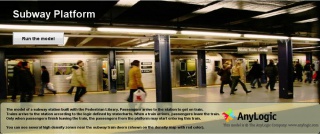

Subway Platform

The model of a subway station built with the Pedestrian Library. Passengers arrive to the station to get on train.
Trains arrive to the station according to the logic defined by statecharts. When a train arrives, passengers leave the train.
Only when passengers finish leaving the train, the passengers from the platform may start entering this train.

This model demonstrates the new feature of AnyLogic Pedestrian Library: density map.
You can see several high density zones near the subway train doors (shown on the density map with red color).
