Walkway and Link

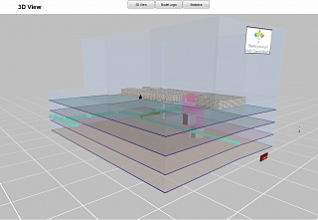

This simulations shows the pedestrian flow of patients in the new walkway
used to communicate the pavilion K (under construction) and the existent
pavilion D at the Jewish General Hospital, as well as the internal link (one floor
below) for logistics transportation

There are two types of circulations flow passing through the walkway:
1) The patients (independent demand)
2) The medical staff (depedent demand according to the number of patients
visiting the emergency room)

And serveral types of of logistics flows: Food, Pharmacy, Laundry, Housekeeping,
etc., allw of them having a schedule time for the trajectories.

Prelimiary studies has shown an expected big congestion every day
between 2PM and 5PM (see graphs on the right).
