Emergency Department - Healthcare

3885 runs

Added by AnyLogic

Application area: Medical institutions

Simulation method: Discrete Event

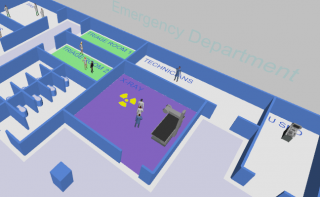

Emergency Department

A simplistic model of an Emergency Department designed primarily to demonstrate the usage of network markup elements in conjunction with Process Modeling Library. Specific markup shapes such as nodes and paths are used to define facility layout. There are three types of resources in Emergency Department: staff (nurses, PAs and technicians), static resources (triage rooms, express care rooms, X-ray room) and portable (ultra sound device). The process includes registration, triage, and either X-ray or U-sound examination. Technicians have their own sub-process to prepare for the U-sound examination and wrap-up afterwards. The resource utilization and patients’ length of stay statistics are collected. You can control the resource capacities on-the-fly and see their impact on utilization and LOS.

The model was created with AnyLogic - simulation software / Medical institutions
